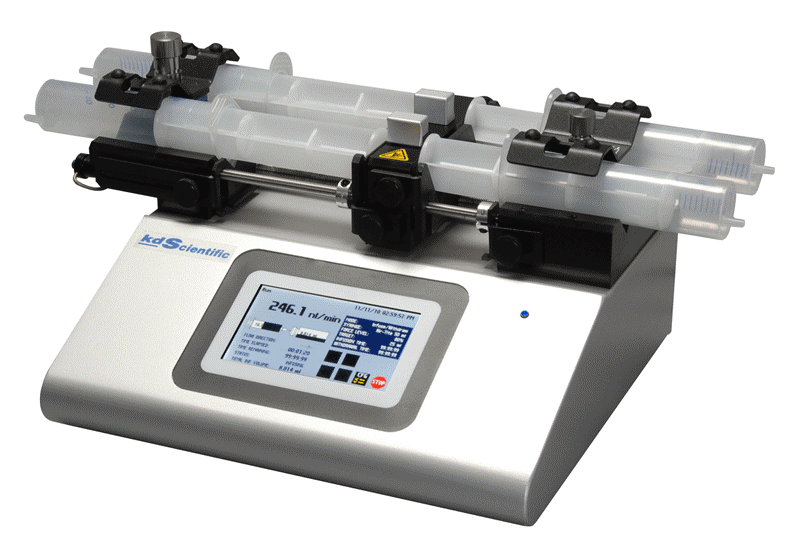

KDS Legato Syringe Pumps

LEGATO 100 SERIES PUMPS

The KD Scientific Legato 100 series offers unparalleled ease of use through the high resolution touch screen user interface. The full touch screen interface enables the user to quickly create configurations and recall them for ease of use. The TFT color display presents all the pump operating parameters on an easy to view run screen.

The password feature prevents accidental configuration changes ensuring the program integrity is retained. The pumps are versatile and can be interconnected through the RS485 interface. Legato 100 series models can be mixed and matched in the daisy chain offering maximum flexibility. Up to 99 pump can be linked together through the RS485 interface.

The Legato optimizes your lab bench space. For limited laboratory space the Legato 100 series can be placed on its side to reduce the footprint. The display can also be changed to allow the user to operate the pump vertically.

AW Part Number	KDS Pump Model	Description
788100	KDS Legato 100	Infuse-Only Syringe Pump
788101	KDS Legato 101	Infuse-Only Dual-Syringe Pump
788130	KDS Legato 130	Infuse/Withdraw Syringe Pump
788110	KDS Legato 110	Infuse/Withdraw Programmable Syringe Pump
788111	KDS Legato 111	Infuse/Withdraw Programmable Dual Syringe Pump
788180	KDS Legato 180	Infuse/Withdraw Programmable Dual Syringe Pump (Low Flow)

LEGATO 200 SERIES PUMPS

The new Legato 200 series is the next generation of syringe pumps

Three basic models ensure the right pump for your application. Infuse only, Infuse and withdraw and Push pull. Each of these pumps is available in a programmable version for maximum flexibility and capability. Each of the basic models work with one syringe or two and can be reconfigured in the field to use with multiple syringes.

The Legato 200 series offers unparalleled ease of use through the high resolution color touch screen user interface. The full touch screen interface enables the user to quickly create configurations and recall them for easy use. The 4.3” TFT color display with touch pad interface presents all the pump operating parameters on one easy to view run screen. Protective cover over the display prevents leakage into the display.

The Legato Series optimizes your lab bench space. For limited laboratory space the Legato 200 Series can be placed on its side to reduce the footprint by 4 Times. The footprint is only 3.5 in x 9.75 in. The display also tilts with the change to allow the user operate the pump vertically.

AW Part Number	KDS Pump Model	Description
788200	KDS Legato 200	Infuse-Only Dual-Syringe Pump
788210	KDS Legato 210	Infuse/Withdrawal Dual-Syringe Pump
788212	KDS Legato 210P	Infuse/Withdrawal Dual-Syringe Pump, Programmable
788270	KDS Legato 270	Push/Pull Syringe Pump
788272	KDS Legato 270P	Push/Pull Syringe Pump, Programmable
