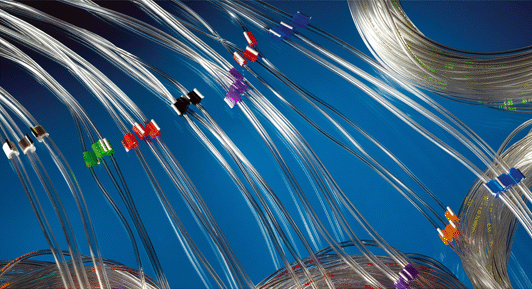

Standard 3-Stop

Standard 3-Stop

Analytical West specializes the supply of small bore tubing for use in Peristaltic Pumps, and we stock peristaltic pump tubing in all sizes and materials, available for same-day shipment to your laboratory.



3-TAB STANDARD AND SOLVENT FLEX PVC TUBING

Standard PVC is an economical high-performance material with great versatility for a wide range of uses. PVC Solva is a flexible, translucent yellow PVC-based compound with resistance to kerosene, petrol and aromatic hydrocarbons. All PVC tubing is available with flared ends to facilitate an easy connection between the peristaltic pump tubing and sample capillary tubing.

Three-stop standard PVC tubing has overall length of 455mm (17.9-inches) with 72mm (2.8-inches) between the stops. PVC Solva has overall length of 430mm (16.9-inches) with 82mm (3.2-inches) between the stops.

Color Code

ID (mm)

ID (in)

Std PVC (12/pk)
Part Number

Flared PVC (12/pk)
Part Number

PVC Solva (12/pk)
Part Number

Flared Solva (12/pk)
Part Number

Orange/Red/Orange

0.19

0.007

PT-3020P

PT-3020P-F

- - - - -

- - - - -

Orange/Blue/Orange

0.25

0.010

PT-3030P

PT-3030P-F

PT-3030SV

PT-3030SV-F

Orange/Green/Orange

0.38

0.015

PT-3080P

PT-3080P-F

PT-3080SV

PT-3080SV-F

Orange/Yellow/Orange

0.51

0.020

PT-3100P

PT-3100P-F

PT-3100SV

PT-3100SV-F

Orange/White/Orange

0.64

0.025

PT-3120P

PT-3120P-F

PT-3120SV

PT-3120SV-F

Black/Black/Black

0.76

0.030

PT-3130P

PT-3130P-F

PT-3130SV

PT-3130SV-F

Orange/Orange/Orange

0.89

0.035

PT-3140P

PT-3140P-F

PT-3140SV

PT-3140SV-F

White/White/White

1.02

0.040

PT-3160P

PT-3160P-F

PT-3160SV

PT-3160SV-F

Red/Red/Red

1.14

0.045

PT-3180P

PT-3180P-F

PT-3180SV

PT-3180SV-F

Gray/Gray/Gray

1.30

0.051

PT-3200P

- - - - -

PT-3200SV

- - - - -

Yellow/Yellow/Yellow

1.42

0.056

PT-3210P

- - - - -

PT-3210SV

- - - - -

Yellow/Blue/Yellow

1.52

0.060

PT-3220P

- - - - -

PT-3220SV

- - - - -

Blue/Blue/Blue

1.65

0.065

PT-3230P

- - - - -

PT-3230SV

- - - - -

Green/Green/Green

1.85

0.073

PT-3250P

- - - - -

PT-3250SV

- - - - -

Purple/Purple/Purple

2.06

0.081

PT-3260P

- - - - -

PT-3260SV

- - - - -

Purple/Black/Purple

2.29

0.090

PT-3270P

- - - - -

PT-3270SV

- - - - -

Purple/Orange/Purple

2.54

0.100

PT-3280P

- - - - -

PT-3280SV

- - - - -

Purple/White/Purple

2.79

0.110

PT-3290P

- - - - -

PT-3290SV

- - - - -



3-TAB SILICONE, SANTOPRENE AND VITON TUBING

Silicone tubing is a long-life translucent tubing with good chemical and heat-resistance, excellent biocompatibility and flexibility. Santoprene tubing is flexible yet durable opaque tubing with excellent resistance to both acid and alkilis. Viton tubing is black fluoroelastomer tubing with excellent resistance to concentrated acids, alkilis, oils, fuels and most aromatic hydrocarbons.

Three-stop silicone tubing has overall length of 400mm (15.75-inches) with 67mm (2.6-inches) between the stops. Three-stop Santoprene tubing has an overall length of 400mm (15.75-inches) with 72mm (2.8-inches) between the stops. Viton tubing is 400mm long (15.75 inches) with 82mm (3.3-inches) between the stops.

Color Code

ID (mm)

ID (in)

Silicone (6/pk)
AW Part Number

Santoprene (6/pk)
AW Part Number

Viton (12/pk)
AW Part Number

Orange/Blue/Orange

0.25

0.010

- - - - -

PT-3030SA

- - - - -

Orange/Green/Orange

0.38

0.015

- - - - -

PT-3080SA

- - - - -

Orange/Yellow/Orange

0.51

0.020

- - - - -

PT-3100SA

PT-3100V

Orange/White/Orange

0.64

0.025

PT-3120SI

PT-3120SA

PT-3120V

Black/Black/Black

0.76

0.030

PT-3130SI

PT-3130SA

PT-3130V

Orange/Orange/Orange

0.89

0.035

PT-3140SI

PT-3140SA

PT-3140V

White/White/White

1.02

0.040

PT-3160SI

PT-3160SA

PT-3160V

Red/Red/Red

1.14

0.045

PT-3180SI

PT-3180SA

PT-3180V

Gray/Gray/Gray

1.30

0.051

PT-3200SI

PT-3200SA

PT-3200V

Yellow/Yellow/Yellow

1.42

0.056

PT-3210SI

PT-3210SA

PT-3210V

Yellow/Blue/Yellow

1.52

0.060

PT-3220SI

PT-3220SA

PT-3220V

Blue/Blue/Blue

1.65

0.065

PT-3230SI

PT-3230SA

PT-3230V

Green/Green/Green

1.85

0.073

PT-3250SI

PT-3250SA

PT-3250V

Purple/Purple/Purple

2.06

0.081

PT-3260SI

PT-3260SA

PT-3260V

Purple/Black/Purple

2.29

0.090

PT-3270SI

PT-3270SA

PT-3270V

Purple/Orange/Purple

2.54

0.100

PT-3280SI

PT-3280SA

PT-3280V

Purple/White/Purple

2.79

0.110

PT-3290SI

PT-3290SA

PT-3290V



Items 1 to 20 of 102 total Page:
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. Next
 Show per page
View as: List  Grid  Sort by Set Descending Direction
$23.00
PVC 3-Stop Tubing, Orange/Black/Orange (0.13mm) 12/pk

AW Part Number: PT-3010P

Add to Wishlist | Add to Compare

$42.00
PVC 3-Stop Flared Tubing, Orange/Black/Orange (0.13mm) 12/pk

AW Part Number: PT-3010P-F

Add to Wishlist | Add to Compare

$23.00
PVC 3-Stop Tubing, Orange/Red/Orange (0.19mm) 12/pk

AW Part Number: PT-3020P /  OEM Part Number: G1833-65571 / G1820-65220 (Agilent)

Add to Wishlist | Add to Compare

$42.00
PVC 3-Stop Flared Tubing, Orange/Red/Orange (0.19mm) 12/pk

AW Part Number: PT-3020P-F /  OEM Part Number: G1833-65571 / G1820-65220 (Agilent)

Add to Wishlist | Add to Compare

$23.00
PVC 3-Stop Tubing, Orange/Blue/Orange (0.25mm) 12/pk

AW Part Number: PT-3030P /  OEM Part Number: 5064-8034 (Agilent)

Add to Wishlist | Add to Compare

$42.00
PVC 3-Stop Flared Tubing, Orange/Blue/Orange (0.25mm) 12/pk

AW Part Number: PT-3030P-F /  OEM Part Number: 5064-8034 (Agilent)

Add to Wishlist | Add to Compare

$40.00
Santoprene 3-Stop Tubing, Orange/Blue/Orange (0.25mm) 6/pk

AW Part Number: PT-3030SA

Add to Wishlist | Add to Compare

$35.00
Solvaflex PVC 3-Stop Tubing, Orange/Blue/Orange (0.25mm) 12/pk

AW Part Number: PT-3030SV

Add to Wishlist | Add to Compare

$55.00
Solvaflex PVC 3-Stop Flared Tubing, Orange/Blue/Orange (0.25mm) 12/pk

AW Part Number: PT-3030SV-F

Add to Wishlist | Add to Compare

$23.00
PVC 3-Stop Tubing, Orange/Green/Orange (0.38mm) 12/pk

AW Part Number: PT-3080P

Add to Wishlist | Add to Compare

$42.00
PVC 3-Stop Flared Tubing, Orange/Green/Orange (0.38mm) 12/pk

AW Part Number: PT-3080P-F

Add to Wishlist | Add to Compare

$40.00
Santoprene 3-Stop Tubing, Orange/Green/Orange (0.38mm) 6/pk

AW Part Number: PT-3080SA

Add to Wishlist | Add to Compare

$35.00
Solvaflex PVC 3-Stop Tubing, Orange/Green/Orange (0.38mm) 12/pk

AW Part Number: PT-3080SV

Add to Wishlist | Add to Compare

$55.00
Solvaflex PVC 3-Stop Flared Tubing, Orange/Green/Orange (0.38mm) 12/pk

AW Part Number: PT-3080SV-F

Add to Wishlist | Add to Compare

$23.00
PVC 3-Stop Tubing, Orange/Yellow/Orange (0.51mm) 12/pk

AW Part Number: PT-3100P

Add to Wishlist | Add to Compare

$42.00
PVC 3-Stop Flared Tubing, Orange/Yellow/Orange (0.51mm) 12/pk

AW Part Number: PT-3100P-F

Add to Wishlist | Add to Compare

$40.00
Santoprene 3-Stop Tubing, Orange/Yellow/Orange (0.51mm) 6/pk

AW Part Number: PT-3100SA

Add to Wishlist | Add to Compare

$35.00
Solvaflex PVC 3-Stop Tubing, Orange/Yellow/Orange (0.51mm) 12/pk

AW Part Number: PT-3100SV

Add to Wishlist | Add to Compare

$55.00
Solvaflex PVC 3-Stop Flared Tubing, Orange/Yellow/Orange (0.51mm) 12/pk

AW Part Number: PT-3100SV-F

Add to Wishlist | Add to Compare

$145.00
Viton/Acidflex 3-Stop Tubing, Orange/Yellow/Orange (0.51mm) 12/pk

AW Part Number: PT-3100V

Add to Wishlist | Add to Compare

Items 1 to 20 of 102 total Page:
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. Next
 Show per page
View as: List  Grid  Sort by Set Descending Direction


© 2009 Analytical West. All Rights Reserved.
