Poly Manifolds & Accessories

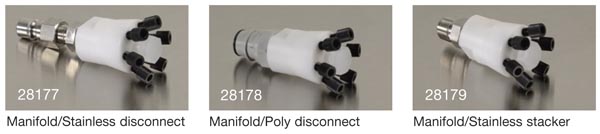

The HPLC Poly Manifold enables up to six waste lines (per manifold) from HPLC processes to be fed into a single intake fitting. Manifolds have six 1/4-28 ports and one 3/8" NPT port (all come with caps for unused ports) and either one quick disconnect in No. 316 stainless steel or polypropylene, or a No. 316 stainless steel stacker connector. The six ports are tapped to accommodate the 1/4-28 threads of the separately available compression fittings. The compression fittings, sold in sets of six, accommodate tubing sizes of either 1/16" and 1/8" OD. The fittings are approximately 1" long and made of Tefzel™. They include ferrules for a compression fit to the waste line. Manifold #28179 has a "stacker" connection enabling it to attach on top of a #28177 or 28178 and allowing up to a total of 12 waste lines to be fed into the disposal can. Multiple manifolds may be used on a custom-designed Quick Disconnect container as long as one disconnect remains unused to permit venting and prevent back pressure.
| 10 Item(s) | Show per page |
| View as: List Grid |
Sort by
|
$189.00
HPLC Poly Manifold with Stainless Steel Quick Disconnect
AW Part Number: 28177
$157.50
HPLC Poly Manifold with Polypropylene Quick Disconnect
AW Part Number: 28178
$157.50
HPLC Poly Manifold with Stainless "Stacker" Connector
AW Part Number: 28179
$42.00
Tungsten Lamp, Thermo/Unicam, Amersham, Pharmacia
AW Part Number: P101
$32.00
$32.00
$33.00
$54.00
$146.00
Tungsten Lamp, Perkin-Elmer Lambda Series
AW Part Number: P106 / OEM Part Number: B0114620
$146.00
