For NexION 300

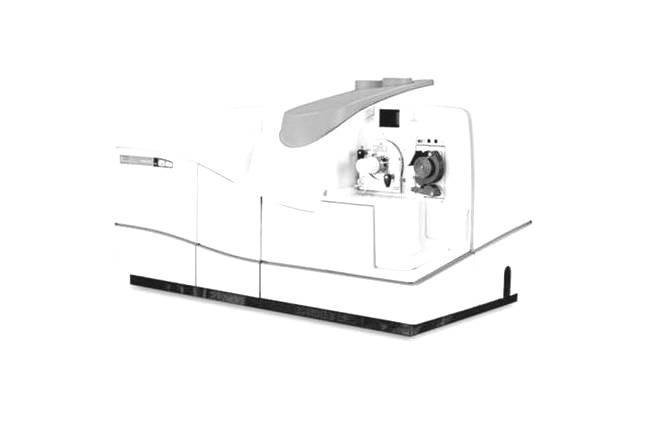

Supplies for PerkinElmer NexION 300 ICP-MS

Torches & Accessories
Demountable Quartz Torch

Part No. 400-10
Demountable Quartz Torch

Demountable Quartz Torches
AW Part #PE Part #Description

400-10

N8122006

Demountable Quartz Torch, ELAN/NexION (all models)

400-10HE

WE1018384 High Efficiency Quartz Torch, ELAN/NexION (all models)
D-Torch with Ceramic Outer Tube for Elan

Part No. 30-808-2937
D-Torch w/ Ceramic Outer Tube for Elan

D Torches & Accessories
AW Part #PE Part #Description

30-807-0540

N0777419

D Torch w/ Quartz Outer Tube, ELAN/NexION (all models)

30-808-2937

N0777415

D Torch w/ Ceramic Outer Tube, ELAN/NexION (all models)

31-808-2847

N0777416

Base & Inner Tube for D Torch, ELAN/NexION (all models)

31-808-2848

N0777420

Quartz Outer Tube for D Torch, ELAN/NexION (all models)

31-808-2849

N0777417 Ceramic Outer Tube for D Torch, ELAN/NexION (all models)
Injectors & Accessories
Alumina Injector, 1.5 mm i.d.

Part No. 320-52
Alumina Injector Tube, 1.5 mm i.d.

Alumina Injectors
AW Part #PE Part #Description

320-51

N8126039

0.85mm (volatile organics)

320-52

N8126040

1.5mm (reduced sample loading)

320-53

N8126041

2.0mm (standard injector)

Quartz Injector, 1.2 mm i.d.

Part No. 320-33
Quartz Injector, 1.2 mm i.d.

Quartz Injectors
AW Part #PE Part #Description

320-33

N0681631

1.2 mm (organic solvents)

320-34

00473292

1.6 mm (organic solvents)

320-35

N8125029 2.0 mm (clinical samples)
DRC Quartz Injector, 0.85 mm i.d.

Part No. 400-31
DRC Quartz Injector, 0.85 mm i.d.

Quartz Ball Joint Injectors
AW Part #PE Part #Description

400-31

WE027030

0.85mm (Volatile Organics), for ELAN DRC/DRCplus/DRC II

400-32

WE027005

1.5mm (Organics), for ELAN DRC/DRCplus/DRC II

400-30

WE023948 2.0mm (General Purpose), for ELAN DRC/DRCplus/DRC II
Injector Support/Torch Base

Part No. 400-35
Injector Support/Torch Base

Injector Support Adapters
AW Part #PE Part #Description

400-35

N8120116

ELAN 9000/6x00/5000/DRC-e

400-37

WE023951

ELAN DRC (Twist Type)

31-808-2824

WE1012406

ELAN DRC II (Cassette Type)

31-808-2825

WE1013266 PFA Cassette Mount 15mm
RF Coils / Power Tubes
RF Load Coil Assembly (Copper)

Part No. 70-900-2006C
RF Load Coil Assembly (Copper)

RF Coils / Power Tubes
AW Part #PE Part #Description

70-900-2006P

N0695477

Power Amplifier Tube (Eimac)

70-900-2006C

WE021816

RF Load Coil Assembly (Copper)

70-900-2006S

- - - - -

Silver RF Coil, ELAN/NexION

70-900-2006G

- - - - -  Gold-Plated RF Coil, ELAN/NexION
Nebulizers
Quartz Meinhard A-Type Nebulizer, 3ml/min

Part No. TQ-30-A3
Quartz Meinhard A3 Type Nebulizer

Meinhard Nebulizers
AW Part #PE Part #Description

TR-30-C3

N8102011

Type C3 Glass Nebulizer

TR-30-K3

N0681574

Type K Glass Nebulizer

TQ-30-A3

WE024371

Type A Quartz Nebulizer

TQ-50-A0.5

N8145011 Type A0.5 Quartz Nebulizer (NexION)

TR-50-C0.5

N8145012 Type C0.5 Nebulizer (NexION)
MicroMist Nebulizer w/ UniFit, 0.2ml/min (1L/min Ar)

ARG-1-UM02
MicroMist Nebulizer w/ UniFit

MicroMist Nebulizers w/ UniFit
AW Part #PE Part #Description

ARG-1-UM005

N0775344

0.05ml/min (1.0 L/min Ar)

ARG-1-UM01

N0775343

0.1ml/min (1.0 L/min Ar)

ARG-1-UM02

N0775342

0.2ml/min (1.0 L/min Ar)

ARG-1-UM04

N0775341 0.4ml/min (1.0 L/min Ar)
MicroMist Nebulizer w/ UniFit, 0.2ml/min (1L/min Ar)

ARG-1-USS04
SeaSpray Nebulizer w/ UniFit

SeaSpray Nebulizers w/ UniFit
AW Part #PE Part #Description

ARG-1-USS04

N0777484

0.4ml/min (1.0 L/min Ar)

ARG-1-QSS1

N0774069

1ml/min (1.0 L/min Ar) Quartz

ARG-1-USS2

N0775340

2ml/min (1.0 L/min Ar)

Ari Mist Nebulizer

Part No. AM5000
Ari Mist Nebulizer

Burgener Nebulizers
AW Part #PE Part #Description

PMM4000

N0775330

PEEK Mira Mist Nebulizer

TMM3500

N0777031

Teflon Mira Mist Nebulizer

T2100

N0777033

T2100 Nebulizer

AM5000

N0777032

Ari Mist Nebulizer

DuraMist Nebulizer, 0.4ml/min (1L/min Ar)

Part No. ARG-1-DM04
DuraMist Nebulizer

DuraMist Nebulizers
AW Part #PE Part #Description

ARG-1-DM04

N8121046

DuraMist Nebulizer, 0.4ml/min

ARG-1-DM1

N8121045

DuraMist Nebulizer, 1ml/min

OpalMist Nebulizer, 0.1ml/min (1.0L/min Ar)

Part No. ARG-1-PFA01
OpalMist Nebulizer

OpalMist Nebulizers
AW Part #PE Part #Description

ARG-1-PFA01

N0777486

OpalMist Nebulizer, 0.1ml/min

ARG-1-PFA2

- - - - - OpalMist Nebulizer, 2ml/min (1.0L/min Ar)

ARG-1-PFA04

N0777485

OpalMist Nebulizer, 0.4ml/min

Conikal Nebulizer w/ UniFit, 1ml/min (1L/min Ar)

Part No. ARG-1-UC1
Conikal Nebulizer w/ UniFit

Conikal Nebulizers w/ UniFit
AW Part #PE Part #Description

ARG-1-UC1

N8121058 Conikal Nebulizer w/ UniFit, 1ml/min (1L/min Ar)

ARG-1-UC2

N0773195

Conikal Nebulizer w/ UniFit, 2ml/min (1L/min Ar)

PolyPro-ST Nebulizer

Part No. ES-4040
PolyPro-ST Nebulizer

PFA & PolyPro Nebulizers
AW Part #PE Part #Description

ES-2040

N8122192

PFA-ST Nebulizer

ES-4040

N0777220

PolyPro-ST Nebulizer

Cyclonic Spray Chambers
Twister Cyclonic Spray Chamber with Helix

Part No. 20-809-0296HE
Twister Cyclonic Spray Chamber with Helix

Spray Chambers with Ball Joint
AW Part #PE Part #Description

20-809-0296HE

N0777525 Twister Cyclonic Spray Chamber O-Ring Free design

20-809-0322HE

N8121063 Low volume (20ml) O-Ring Free Glass Cyclonic Spray Chamber

20-809-0380HE

N8121062 O-Ring Free Cyclonic Spray Chamber (with Auxiliary Port)

20-809-3625HE

N8121064 Twinnabar (Baffled Low Volume) Cyclonic Spray Chamber with Helix

400-20

WE025221

Baffled Quartz Spray Chamber (Teflon O-ring type) with ball joint

400-20J

WE025221 Water Cooled Quartz Cyclonic Spray Chamber
Cyclonic Spray Chamber

Part No. 300-19MS
Cyclonic Spray Chamber

Spray Chambers without Ball Joint
AW Part #PE Part #Description

20-809-0162HE

N0777491

Low volume (20ml) O-Ring Free Glass Cyclonic Spray Chamber

20-809-0208Q

N0777035

Quartz Twister Spray Chamber

20-809-0224HE

N0775350

O-Ring Free Glass Cyclonic Spray Chamber with Helix

20-809-0491HE

N0777492

Low volume (20ml) O-Ring Free Baffled Glass Cyclonic Spray Chamber

20-809-0578HE

N8121060

Baffled O-Ring Free Glass Cyclonic Spray Chamber with Helix

20-809-2509

N0777493

Tracey PFA44 Spray Chamber with Helix and ScrewLok

300-19MS

N8122188

Standard Glass Cyclonic Spray Chamber

300-19MSQ

N8122188

Quartz Cyclonic Spray Chamber, ELAN DRCe/9000/6X00/5000

Cones
Platinum Skimmer Cone, NexION 300 Series

Part No. SC4014-Pt
Platinum Skimmer Cone

Sampler & Skimmer Cones
AW Part #PE Part #Description

SC4011-Ni

W1033612

Nickel Sampler Cone, NexION 300 Series

SC4012-Ni

W1026356

Nickel Skimmer Cone, NexION 300 Series

SC4013-Pt

W1033614

Platinum Sampler Cone, NexION 300 Series

SC4014-Pt

W1026907

Platinum Skimmer Cone, NexION 300 Series

SC4020-Al

W1033995

Hyper Skimmer Cone

Peristaltic Pump Tubing
Standard PVC Tubing
Standard PVC Tubing
AW Part #PE Part #Description

PT-2020P

N0695476

Standard PVC Tubing (2-Stop), 0.19mm i.d. (Orange-Red)

PT-2030P

N0773117

Standard PVC Tubing (2-Stop), 0.25mm i.d. (Orange-Blue)

PT-2080P

N0777110

Standard PVC Tubing (2-Stop), 0.38mm i.d. (Orange-Green)

PT-2130P

09908587

Standard PVC Tubing (2-Stop), 0.76mm i.d. (Black-Black)

PT-2180P

09908585

Standard PVC Tubing (2-Stop), 1.14mm i.d. (Red-Red)

PT-2220P

09923536

Standard PVC Tubing (2-Stop), 1.52mm i.d. (Yellow-Blue)

PT-2300P

N8122012

Standard PVC Tubing (2-Stop), 3.16mm i.d. (Black-White)

Flared PVC Tubing
Flared PVC Tubing
AW Part #PE Part #Description

PT-2020P-F

N0773111

Flared PVC Tubing (2-Stop), 0.19mm i.d. (Orange-Red)

PT-2030P-F

N0773112

Flared PVC Tubing (2-Stop), 0.25mm i.d. (Orange-Blue)

PT-2080P-F

N0777042

Flared PVC Tubing (2-Stop), 0.38mm i.d. (Orange-Green)

PT-2090P-F

N0777042

Flared PVC Tubing (2-Stop), 0.44mm i.d. (Green-Yellow)

PT-2130P-F

N0777043

Flared PVC Tubing (2-Stop), 0.76mm i.d. (Black-Black)

Solvent Flex
Solvent-Resistant PVC Tubing
AW Part #PE Part #Description

PT-2130SV

00473550

Solvent Flex Tubing (2-Stop), 0.76mm i.d. (Black-Black)

PT-2180SV

09923037

Solvent Flex Tubing (2-Stop), 1.14mm i.d. (Red-Red)

Silicone Tubing
Silicone Tubing
AW Part #PE Part #Description

PT-2130SI

00473552

Silicone Tubing (2-Stop), 0.76mm i.d. (Black-Black), 6/pk

PT-2160SI

N0777441

Silicone Tubing (2-Stop), 1.02mm i.d. (White-White), 6/pk

PT-2180SI

N0691595

Silicone Tubing (2-Stop), 1.14mm i.d. (Red-Red), 6/pk

PT-2200SI

N0777443

Silicone Tubing (2-Stop), 1.30mm i.d. (Gray-Gray), 6/pk

PT-2290SI

09923448

Silicone Tubing (2-Stop), 2.79mm i.d. (Purple-White), 6/pk

Viton Tubing
Viton Tubing
AW Part #PE Part #Description

PT-2100V

N0777446

Viton Tubing (2-Stop), 0.51mm i.d. (Orange-Yellow), 12/pk

PT-2130V

N0773118

Viton Tubing (2-Stop), 0.76mm i.d. (Black-Black), 12/pk

PT-2160V

N0777442

Viton Tubing (2-Stop), 1.02mm i.d. (White-White), 12/pk

PT-2180V

N0773115

Viton Tubing (2-Stop), 1.14mm i.d. (Red-Red), 12/pk

PT-2200V

N0777445

Viton Tubing (2-Stop), 1.30mm i.d. (Gray-Gray), 12/pk

PT-2230V

N0777447

Viton Tubing (2-Stop), 1.65mm i.d. (Blue-Blue), 12/pk

Santoprene Tubing
Santoprene Tubing
AW Part #PE Part #Description

PT-2180SA

N0773119

Santoprene Tubing (2-Stop), 1.14mm i.d. (Red-Red), 6/pk

PT-2200SA

N0777444

Santoprene Tubing (2-Stop), 1.30mm i.d. (Gray-Gray), 6/pk

PT-2250SA

N0773116

Santoprene Tubing (2-Stop), 1.85mm i.d. (Green-Green), 6/pk

MICRO PERISTALTIC PUMP (MPP/MP2) TUBING

MP2 PVC Tubing (Standard and Flared)

MP2 Solva Tubing (Standard and Flared)

MP2 Santoprene Tubing

Note: This is a partial listing only. Please contact us or call (toll-free) at 1-800-305-0004 if you are unable to locate a specific part or have any questions regarding which product(s) your instrument uses.
