For TJA Radial Instruments

For TJA Radial Instruments

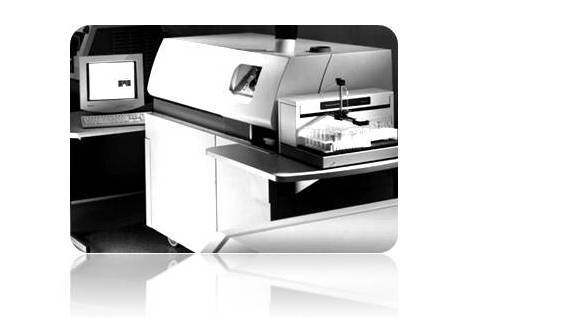

Supplies for TJA Radial ICP-OES

The following Analytical West products are guaranteed to be compatible with radial view TJA ICP-OES instruments, including the Iris, Atomscan 16 & 25, ICAP 61E and Intrepid. Please contact us (toll-free) at 1-800-305-0004 if you have any questions or uncertainty regarding which product is best for your instrument and application.



CERAMIC BASE TORCHES WITH INJECTORS

AW Part Number

Thermo Part Number

Description

275-06

126432-02

Radial Ceramic Base Torch, HF/LF w/ 1.5mm Injector

275-07

126432-01

Radial Ceramic Base Torch, High Flow w/ 1.5mm Injector

275-07HF

127179-01

Radial Ceramic Base Torch, High Flow w/ 1.5mm Ceramic Injector

275-08

125124-01

Radial Ceramic Base Torch, High Flow w/ 1.0mm Injector

275-09

126432-04

Radial Ceramic Base Torch, High Flow (Slotted) w/ 1.5mm Injector



CERAMIC BASE TORCHES (without injectors)

AW Part Number

Thermo Part Number

Description

275-06WO

126440-02

Radial Ceramic Base Torch, High-Flow/Low-Flow

275-07WO

126440-01

Radial Ceramic Base Torch, High Flow

275-09WO

126440-06

Radial Ceramic Base Torch, High Flow (Slotted)



SAMPLE INJECTORS

AW Part Number

Thermo Part Number

Description

250-40

125407-01

Quartz Injector, 1.0mm (2 Red Rings)

250-41

125407-00

Quartz Injector, 1.5mm (1 Red Ring)

250-42

136502-01

Quartz Injector, 2.0mm (1 Blue Ring)

250-43

136502-02

Quartz Injector, 2.4mm (2 Blue Rings)



SPRAY CHAMBERS

AW Part Number

Thermo Part Number

Description

250-19

130089-00

Open End Spray Chamber

275-14

139663-00

Cyclonic Spray Chamber, Standard Pump Drain for Floor Models

275-18

140542-00

Cyclonic Spray Chamber, Standard Pump Drain for Benchtop Models

275-19

136105-00

Cyclonic Spray Chamber, Standard Gravity Drain for Benchtop Models



NEBULIZERS

AW Part Number

Thermo Part Number

Description

500-92

126989-00

Cross-Flow Nebulizer

TR-30-K2

139600-00

Meinhard K-Type Nebulizer, 2ml/min

500-80QD

134365-00

Glass Concentric Nebulizer (K-Type), 3ml/min

510-10

140094-00

V-Groove Nebulizer

AR30-07-FC2E

139184-00

Conikal Nebulizer

AR30-07-FSS2E

141863-00

SeaSpray Nebulizer

PMM4000

4600356

Burgener PEEK Mira Mist Nebulizer

TMM3500

4600356

Burgener Teflon Mira Mist Nebulizer

T2100

136388-00

Burgener T2100 Nebulizer

BTN

136388-00

Burgener Trace Nebulizer

AR30-07-CP2

141899-00

PolyCon Polyimide Concentric Nebulizer



RF COILS & POWER TUBES

AW Part Number

Thermo Part Number

Description

70-900-4001S

- - - - -

Silver Plated RF Coil for TJA Radial Systems

70-900-4001G

- - - - -

Gold Plated RF Coil for TJA Radial Systems

3CX1500A7

077186-00

RF Oscillator / Power Amplifier Tube



PERISTALTIC PUMP TUBING

AW Part Number

Thermo Part Number

Description

PT-3080P

- - - - -

3-Tab PVC Tubing, Orange/Green/Orange (0.38mm), 12/pk

PT-3140P

130177-00

3-Tab PVC Tubing, Orange/Orange/Orange (0.89mm), 12/pk

PT-3180P

130177-01

3-Tab PVC Tubing, Red/Red/Red (1.14mm), 12/pk

PT-3140SI

130177-02

3-Tab Silicone Tubing, Orange/Orange/Orange (0.89mm), 6/pk

PT-3180SI

130177-03

3-Tab Silicone Tubing, Red/Red/Red (1.14mm), 12/pk

PT-3140V

130177-04

3-Tab Viton Tubing, Orange/Orange/Orange (0.89mm), 12/pk

PT-3180V

130177-05

3-Tab Viton Tubing, Red/Red/Red (1.14mm), 12/pk

PT-3260V

131856-00

3-Tab Viton Tubing, Purple/Purple/Purple (2.06mm), 12/pk
