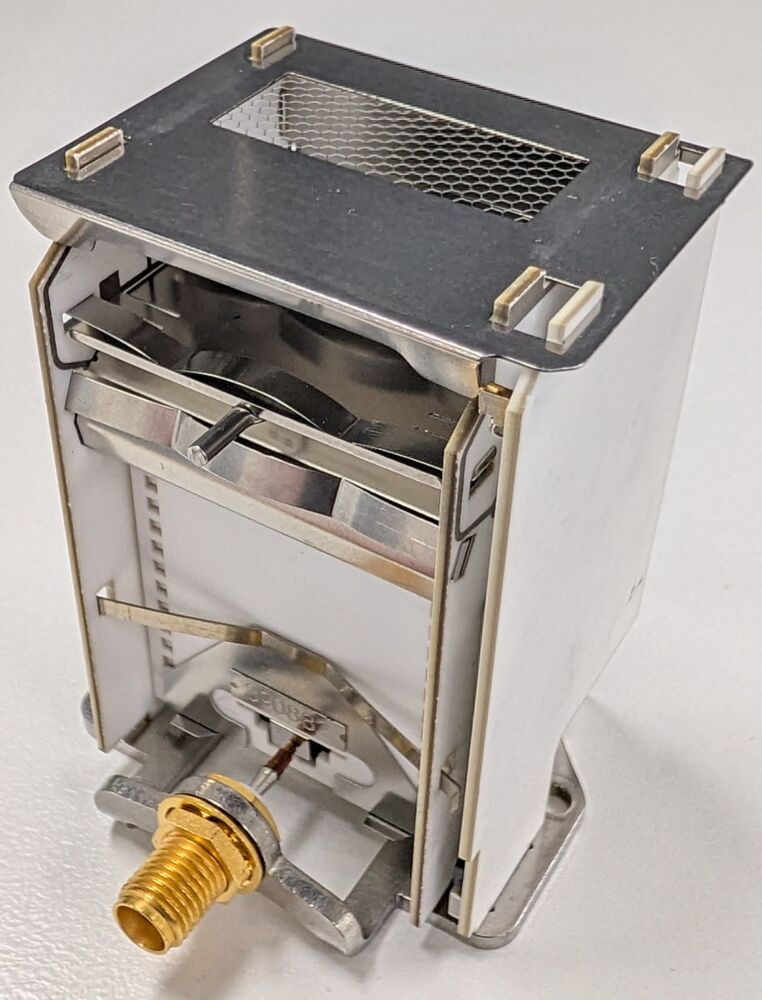

ETP FAST-TOF PLUS HIGH DYNAMIC RANGE - SHORT - RoHS

148006 Fast-TOF Plus
(replaces P/N 148002/AF8002 and 14880/AF880)

- ETP's next generation Fast-TOF detector incorporating long life eXtion® technology
--Superior life
--150 V lower starting voltage
--Optimized dynode mix
- Fast <2.5 ns single ion pulse width
- 500 mV pulse linearity
- Improved sensitivity via increased front-end ion conversion efficiencies
- Better robustness through advanced manufacturing techniques
- Improved RoHS compliance
- Directly retrofittable with existing Fast-TOF detectors
- Can be floated up to +/- 15 kV via the ETP AC Coupler

This unit is made to order. Please allow 4-8 weeks for manufcature and delivery.
