Supplies for Analytik Jena/Bruker/Varian ICP-MS

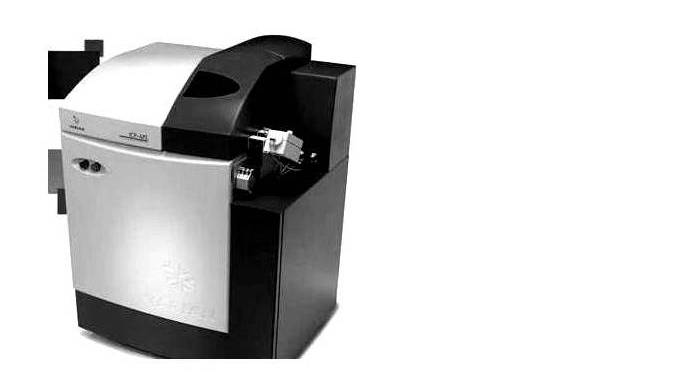

Supplies for Bruker (Formerly Varian) ICP-MS

=================================================================

Ultramass | 800-MS Series

=================================================================

Torches & Accessories

Varian Ultramass Torch - Demountable Kit

800-51
Demountable Torch Kit

Varian Ultramass

AW Part Number

OEM Part Number

Description

800-06

20-100783-00

One-Piece Torch

800-51

99-100717-00

Demountable Torch Kit

800-11

20-100793-00

Demountable Torch Body

Varian ICP-MS Torch

800-34
One-Piece Torch

Varian/Bruker 800-MS Series

AW Part Number

OEM Part Number

Description

800-34

20-101007-00

One-Piece Torch

800-31

20-101008-00

Sheath Gas Bypass

800-32

20-101009-00

Sheath Gas Port



=================================================================

Injectors

Quartz Injector, 1.8mm

800-41
Quartz Injector, 1.8mm

AW Part Number

OEM Part Number

Description

800-42

20-100775-00

Quartz Injector, 0.8mm

800-41

20-100730-00

Quartz Injector, 1.8mm

800-45

20-100675-00

Alumina Injector, 1.8mm

800-46

- - - - -

Alumina Injector, 2.5mm



=================================================================

Nebulizers

MicroMist w/ UniFit (0.4ml/min)

ARG-1-UM04
MicroMist w/ UniFit (0.4ml/min)

AW Part Number

OEM Part Number

Description

AR30-1-FC2E 20-101260-00

Conikal Nebulizer w/ EzyFit

ARG-1-UC2

- - - - - Conikal Nebulizer w/ UniFit
TR-30-K2 20-100695-00

Meinhard Nebulizer (K-Type)

TR-30-C2 20-100765-00

Meinhard Nebulizer (C-Type)

ARG-1-UM04 20-100816-00

MicroMist w/ UniFit (0.4ml/min)

AR30-1-FM04E 20-101021-00

MicroMist w/ EzyFit (0.4ml/min)

ARG-07-USS2

20-100964-00

SeaSpray Nebulizer (0.7L/min)

ARG-1-USS2

- - - - - SeaSpray Nebulizer (1L/min)

PMM4000

4600356

PEEK Mira Mist Nebulizer

TMM3500

- - - - -

Teflon Mira Mist Nebulizer

AM5000

4600495

Ari Mist Nebulizer

800-55

99-100574-00

V-Groove Nebulizer

AR30-07-FS6E

20-100976-00

Slurry Nebulizer (0.7L/min)

AR30-1-FS6E

20-100977-00 Slurry Nebulizer (1L/min)



=================================================================

Spray Chambers

Twister Cyclonic Chamber w/ Helix

20-809-0285HE
Twister Cyclonic Chamber w/ Helix

Varian Ultramass

AW Part Number

OEM Part Number

Description

800-21

20-100817-00

Cyclonic Spray Chamber

20-809-0285HE

79-100525-00

Twister Cyclonic Chamber w/ Helix

20-809-9199HE

79-100526-00

Twister w/ Helix (w/ socket)

800-17

99-100704-00

Sturman-Master Spray Chamber

Scott Style Spray Chamber

800-33
Scott Style Spray Chamber

Varian/Bruker 800-MS Series

AW Part Number

OEM Part Number

Description

800-33

20-101010-00

Scott Style Spray Chamber

KT-1017

79-100615-00

IsoMist Kit



=================================================================

Peristaltic Pump Tubing

AW Part Number

OEM Part Number

Description

PT-2030P-F

- - - - - 0.25mm (Orange/Blue) Flared

PT-2080P-F

- - - - - 0.38mm (Orange/Green) Flared

PT-2100P-F

- - - - - 0.51mm (Orange/Yellow) Flared

PT-2130P

37-100272-00 0.76mm (Black/Black)

PT-2160P

37-100344-00 1.02mm (White/White)

PT-2200P

37-100345-00 1.30mm (Gray/Gray)

PT-2230P

37-100346-00 1.65mm (Blue/Blue)

PT-2260P

37-100273-00 2.06mm (Purple/Purple)



Note:  This is a partial listing only.  Please contact us (toll-free) at 1-800-305-0004 or by email at sales@analyticalwest.com if you are unable to locate a specific part.
