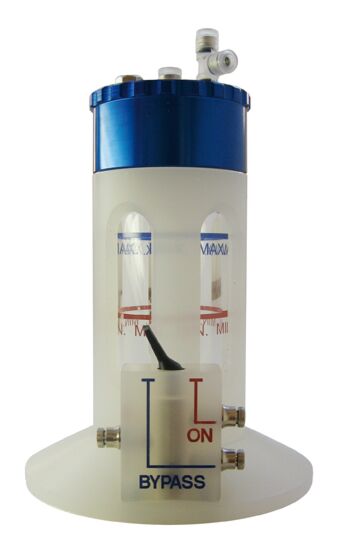

Capricorn Argon Humidifier with Bypass

The Argon Humidifier is commonly used in ICP analyses involving samples with high dissolved solids concentration. Helping to prevent salt build-up inside the sample introduction system, the Argon Humidifier allows uninterrupted and maintenance free operation. Glass Expansion is pleased to introduce the Capricorn - Combining ease of operation, high performance and safety.

•The rugged and durable plastic casing enhances safety.
•The built-in pressure indicator serves as a diagnostic so you always know the sample introduction system is operating properly.
•An optional easy-to-use bypass toggle allows you to take the Capricorn off-line without disconnecting argon lines.
•Maximum and minimum fill marks ensure that you are always operating under optimum conditions.
•A rugged bubbling frit ensures maximum saturation of the argon.

Specifications

•Maximum Operating Pressure: 4.5 Bar or 65 psi
•Liquid volume at minimum operating level: 77ml
•Liquid volume at maximum operating level: 132ml
•Height: 195mm
•Main Body Diameter: 68mm
•Weight: 690 grams (when empty)
•Fittings: Push-in type 4mm (plated brass)
