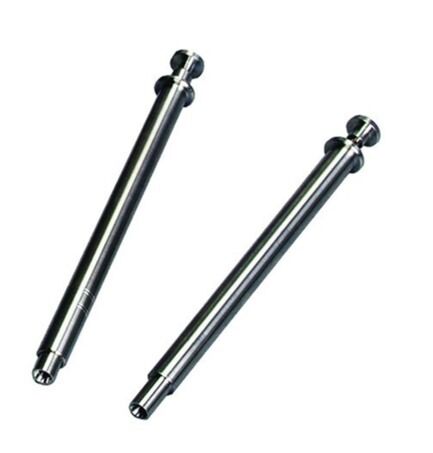

2.5ml Stainless Steel Syringe w/ 1/16-in Swagelok™

Stainless steel offers good resistance to most aggressive liquids. Wetted parts are #16 stainless steel or Viton. Syringes are available in 2.5, 8, 20, 50, 100 and 200 ml sizes with removable replaceable tips. Genuine SWAGELOK™ syringe to tube fittings are available in 1/16, 1/8, and 1/4 inch sizes. A luer lock end fitting is also available. All tips are interchangeable with all syringes from 20 to 200 ml in the size.

Both syringes barrel end plungers are #316 stainless steel. A Viton O-ring seal between top and end of the barrel insures against leakage. Syringes are guaranteed to be leak free for pressures up to 7000 psi.

All syringes are supplied with inside diameter dimensions for use with the KDS model 410 series. Replacement Viton O-rings are available as are the more chemically resistant perfluroelastomer O-rings.

Swagelok™ is a registered trademark.
