Special Purpose Syringes | eVol® xr Electronic Syringes
eVol®- World's First Digitally Controlled Analytical Syringe

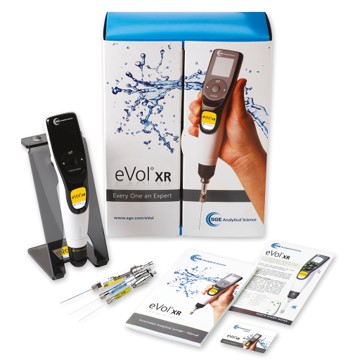

- eVol® xr Electronic Syringe
- eVol® xr for NMR
- eVol® xr for MEPS®
- eVol® xr Starter Kits
eVol® is the coupling of two precision devices: a digitally controlled electronic drive and an XCHANGE® enabled analytical syringe. The result is a digitally controlled positive displacement dispensing system that can be programmed to reproducibly and accurately perform a wide variety of liquid handling procedures.
Syringes | eVol® xr Kits Ordering Information
| Part Number | Part Description and Detail |
|---|---|
| 2910200 |
eVol xr Starter Kit (includes):
|
| 2910100 |
eVol xr Starter Kit for NMR (includes):
|
eVol® XCHANGE® and eVol® MEPS™ Syringes Ordering Information
| Syringe P/N | Description | Needle Length | Needle Gauge | Needle OD | Needle ID | Needle Type | Repl. Needle P/N | Repl. Plunger P/N | Syringe 3/pk P/N |
|---|---|---|---|---|---|---|---|---|---|
| 2910020 | 5 μL | 50 mm | 25 | 0.5 mm | 0.12 mm | Bevel | 036910 | 2910380 | 2910320 |
| 2910021 | 5 μL(without needle) | - - - | - - - | - - - | - - - | - - - | - - - | 2910380 | - - - |
| 2910022 | 50 μL | 50 mm | 25 | 0.5 mm | 0.2 mm | Bevel | 038110v | 2910382 | 2910322 |
| 2910023 | 50 μL(without needle) | - - - | - - - | - - - | - - - | - - - | - - - | 2910382 | - - - |
| 2910027 | 50 μLMEPS™ applications* | - - - | - - - | - - - | - - - | - - - | - - - | 2910382 | - - - |
| 2910024 | 500 μL | 50 mm | 25 | 0.5 mm | 0.2 mm | Bevel | 039110^ | 2910384 | 2910324 |
| 2910025 | 500 μL(without needle) | - - - | - - - | - - - | - - - | - - - | - - - | 2910384 | - - - |
| 2910026 | 500 μLMEPS™ applications* | - - - | - - - | - - - | - - - | - - - | - - - | 2910384 | - - - |
| v - All SGE 25 – 500 μL replacement needles can be used with 50 μL eVol® syringes. | |||||||||
| ^ - All SGE 1 – 2.5 mL replacement needles can be used with 500 μL eVol® syringes. | |||||||||
| * - The 50 μL and 500 μL eVol® MEPS™ syringes can be used with the range of MEPS™ BINs. | |||||||||
Alternative Replacement Needles Ordering Information
| Volume | Needle Length (mm) | Needle Gauge | Needle OD (mm) | Needle ID (mm) | Needle Tip Type | Needle Code | Pack Size | Part Number |
|---|---|---|---|---|---|---|---|---|
| 5 μL | 51 (2*) | 22 | 0.028* | 0.17 | LC | N5-5.1/22LC 5UL EVOL | 5 | 036912 |
| 5 μL | 50 | 23 | 0.63 | 0.15 | Cone | N5-5/23C 5UL EVOL | 5 | 036914 |
| 5 μL | 70 | 25 | 0.50 | 0.20 | Bevel | N5-7/25BV 5UL EVOL | 5 | 036916 |
| 5 μL | 70 | 26 | 0.47 | 0.20 | Cone | N5-7/26C 5UL EVOL | 5 | 036918 |
| 5 μL | 115 | 25 | 0.50 | 0.20 | Bevel | N5-11.5/25BV 5UL EVOL | 2 | 036920 |
| 50 μL eVol® syringes can be used with all standard SGE 25-500 μL replacement needles. | ||||||||
| 500 μL eVol® syringes can be used with all standard SGE 1-2.5 mL replacement needles. | ||||||||
