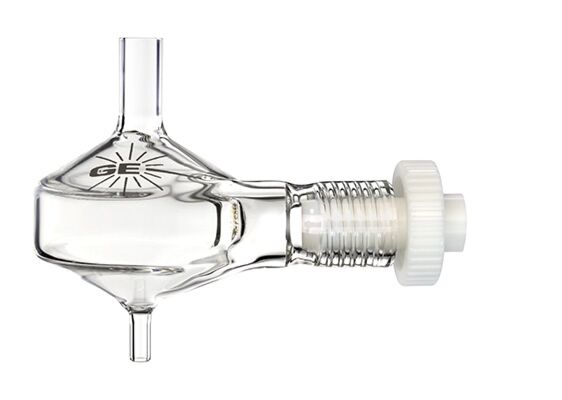

Cinnabar Spray Chamber with Helix CT

The low volume spray chamber for all ICPs

The Cinnabar spray chamber is a mini-cyclonic spray chamber that gives good sensitivity at very low uptakes. The Cinnabar's design and low volume are ideal for the reduction of memory and matrix effects and very fast washout.

• Material: Borosilicate glass
• Volume: 20mL
• Physical reproducibility ~1%
• Matrix effects 5 times lower than with coaxial chambers
• Low RSD's due to highly accurate construction
• Positive stop for reproducible nebulizer insertion
• Application uptake range ~20 to 400 µL/min
• Ideal for use with MicroMist nebulizers
